Unlocking the Secrets of Polycarboxylate Superplasticizers：Synthesis and Advanced Dispersing Mechanisms Demystified
It is widely recognized that Polycarboxylate Superplasticizer are increasingly utilized in concrete engineering applications. Compared to traditional water reducers such as naphthalene sulfonate and sulfonated melamine formaldehyde condensates, Polycarboxylate Superplasticizer can provide high dispersibility, fluidity, and stability to the concrete mix at low dosages, preventing slump loss. The rising cost of industrial naphthalene, lengthy production cycles of naphthalene-based reducers, and severe environmental pollution issues have necessitated the use of Polycarboxylate Superplasticizer.
There is a lack of comprehensive reports on the research progress of Polycarboxylate Superplasticizer, especially in terms of their preparation principles and action mechanisms. This summary aims to cover the research developments in the preparation principles, action mechanisms, and future prospects of Polycarboxylate Superplasticizer.
1.Preparation Principles of Polycarboxylate Superplasticizers
Polycarboxylate Superplasticizer are high-performance water reducers synthesized in aqueous solutions through the free radical copolymerization principle. They form macromolecular surfactants with comb-like structures that contain sulfonic acid groups, carboxylic groups, amino groups, and polyoxyethylene side chains.
Key Raw Materials: Methacrylic acid, acrylic acid, ethyl acrylate, hydroxyethyl acrylate, sodium allyl sulfonate, methyl methacrylate, methoxy polyethylene glycol methacrylate, ethoxy polyethylene glycol acrylate, allyl ether, etc. Initiators used in the polymerization process include water-soluble persulfate initiators, benzoyl peroxide, and azobisisobutyronitrile; chain transfer agents include 3-mercaptopropionic acid, mercaptoacetic acid, and isopropanol.
Synthesis Method: In a reaction vessel equipped with an electric stirrer, thermometer, and dropping funnel, polymerization monomer solutions, initiator solutions, and chain transfer agent solutions are slowly added. The choice of polymerization monomers should take into account their copolymerization rates. The reaction temperature can be determined based on the specific reaction monomers, typically within the temperature range of 0-60°C. After the monomer solution is added within 1-2 hours, the reaction is continued for 1 hour at the same temperature, followed by water addition (neutralization) before discharging the product.
2.Action Mechanism of Polycarboxylate Superplasticizers
Polycarboxylate Superplasticizer are a new type of water reducer with many outstanding advantages, but their mechanism of action is not fully understood yet. Here are some perspectives:
(1) Retardation effect, mainly because the carboxyl groups act as retardation components. R-COO～ interacts with Ca2+ ions to form complexes, reducing the concentration of Ca2+ ions in the solution, delaying the formation of Ca(OH)2 crystals, reducing the formation of C-H-S gel, and delaying cement hydration.
(2) The polar groups with strong affinity to water, such as carboxyl (-COOH), hydroxyl (-OH), amino (-NH2), and polyalkylene (-O-R)n, mainly provide dispersion and fluidity to cement particles through adsorption, dispersion, wetting, and lubrication actions. They reduce the frictional resistance between cement particles, lower the free energy of the cement-water interface, and increase the workability of fresh concrete. Polycarboxylate substances adsorbed on the surface of cement particles impart negative charges to cement particles, causing electrostatic repulsion between cement particles and dispersing them, leading to inhibited aggregation of cement paste (DLVO theory), increasing the contact area between cement particles and water, and ensuring full hydration of cement. During the dispersion of cement particles, free water locked by aggregates is released, improving workability and reducing the amount of mixing water.

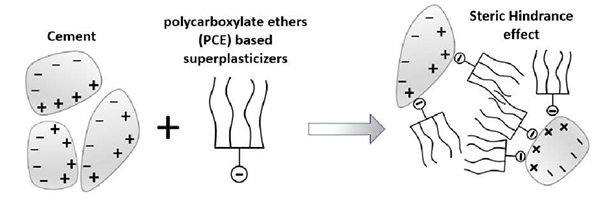

(3) Steric hindrance effect. Polycarboxylate molecules adsorbed on the surface of cement particles form a "comb-like" structure, creating an adsorption layer on the surface of gel materials. When polymer molecular adsorption layers approach and intersect, physical steric hindrance occurs between polymer chains, preventing cement particle aggregation. This is an important reason why carboxylic acid superplasticizers have stronger dispersing capabilities compared to other systems.
(4) The mechanism of maintaining dispersion of Polycarboxylate Superplasticizer can be understood from the relationship between time after mixing cement paste and Zeta potential. Generally, concrete using naphthalene and melamine-based superplasticizers experiences significant slump loss after 60min compared to concrete containing polycarboxylate superplasticizers. This is mainly due to different adsorption models between the latter and cement particles, where the force between polymer adsorption layers is steric electrostatic repulsion, resulting in minor changes in Zeta potential.
Research has found that using only the DLVO theory to explain ionic repulsion often significantly differs from experimental results. The steric hindrance effect successfully explains the dispersing mechanism of Polycarboxylate Superplasticizer, where polymer molecules adsorbed on cement particle surfaces extend into the solution, generating steric hindrance that prevents particles from approaching each other, thereby dispersing and stabilizing cement particles. This mechanism is widely accepted. Polymers with long branches have low potential and high steric repulsion, resulting in good dispersion after adsorption but poor particle dispersion stability. Overly long branches may cause intertwinement of surface branches between dispersed particles, leading to particle aggregation.
