Optimizing Concrete with Polycarboxylate Superplasticizers: Tackling Challenges and Boosting Performance
Polycarboxylate superplasticizers have seen rapid development abroad in recent years due to their superior performance and pollution-free production. In Japan, the usage ratio of Polycarboxylate superplasticizers to sodium naphthalene formaldehyde sulfonate has exceeded 7:3. The molecular structure, mechanism of action, and behavior in concrete of polycarboxylate superplasticizers differ significantly from traditional superplasticizers. Therefore, understanding and proper usage are crucial for promoting the application of polycarboxylate superplasticizers.
Polycarboxylate superplasticizers are characterized by low dosage, high water reduction rate, good plastic retention, strong adaptability to cement, and low concrete shrinkage. This gives first-time users the impression that these superplasticizers are more convenient, safer, and more efficient compared to previous generations. However, during the engineering application of polycarboxylate superplasticizers, it has been found that they, like other superplasticizers, have certain limitations. Their advantages are relative, so they must still be tested before application. Common issues encountered during engineering applications are analyzed and solutions are proposed based on actual conditions.
1.Cement Compatibility
Cement and binder materials are complex and variable in composition. From the adsorption-dispersion mechanism perspective, it is impossible to find a superplasticizer that is universally compatible. Although polycarboxylate superplasticizers have broader adaptability than sodium naphthalene formaldehyde sulfonate, they may still exhibit poor compatibility with some cements. This is often reflected in reduced water reduction rates and increased slump loss. Even for the same cement, the effect of the superplasticizer can vary with different finenesses of grinding.
Phenomenon: A mixing plant using a specific P-042.5R cement to supply C50 concrete to a construction site found that the dosage of the polycarboxylate superplasticizer was slightly higher than for other cements. During actual mixing, the observed slump was 210mm, but when unloading the concrete into the pump truck at the site, it was found that the concrete could not be discharged. After adding a bucket of superplasticizer and remixing, the observed slump was 160mm, which was barely sufficient for pumping. However, during unloading, the concrete again could not be discharged and had to be returned to the plant where a large amount of water and a small amount of superplasticizer were added to barely unload the concrete, nearly causing it to set in the mixer truck.
Cause Analysis: Failure to conduct compatibility tests between each batch of cement and the superplasticizer before starting the batch.
Prevention: Conduct a compatibility test with the construction mix for each batch of cement before starting the batch. Choose appropriate admixtures; avoid using coal gangue as an admixture with polycarboxylate superplasticizers due to poor compatibility.
2.Sensitivity to Water Content
The use of Polycarboxylate superplasticizers significantly reduces the water content in concrete, with single cubic meter water content often between 130-165kg and water-cement ratios between 0.3-0.4, sometimes even below 0.3. In such low water content conditions, fluctuations in water addition can lead to significant changes in slump, causing sudden increases in slump and water bleeding.
Phenomenon: A mixing plant using P-032.5R cement to prepare C30 concrete, with a contract requirement for a slump of 150mm ± 30mm at the site, measured a slump of 180mm at the plant. Upon arrival at the site, the slump was found to be 210mm, resulting in two truckloads of concrete being rejected and returned to the plant, where the slump was still 210mm, with signs of bleeding and segregation.
Cause: Good compatibility between the cement and the superplasticizer, slightly high superplasticizer dosage. Inadequate mixing time, with the observed slump at discharge not reflecting the true slump due to short mixing time.
Prevention: Use appropriate superplasticizer dosages and high measurement accuracy for cements sensitive to polycarboxylate superplasticizers. Extend mixing time appropriately; even with twin-shaft compulsory mixers, mixing time should not be less than 40 seconds, preferably over 60 seconds.
3.Excessive Superplasticizer Dosage Leading to Excessive Surface Bubbles
From a pumpability and durability perspective, increasing air entrainment is beneficial. Many Polycarboxylate superplasticizers have significant air-entraining properties. Like sodium naphthalene formaldehyde sulfonate superplasticizers, polycarboxylate superplasticizers also have a saturation point. For different types of cement and cement dosages, the saturation point of the superplasticizer in concrete varies. If the dosage approaches this saturation point, only by adjusting the amount of paste in the concrete or using other methods can the workability of the concrete mixture be improved.

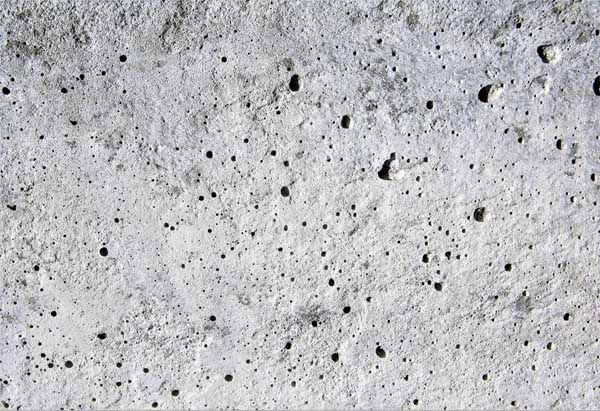

Phenomenon: A mixing plant that had been using polycarboxylate superplasticizers for a period suddenly received feedback from a construction site that the shear wall had too many surface bubbles after formwork removal, resulting in poor appearance.
Cause: On the day of concrete pouring, the site repeatedly reported low slump and poor workability. The mixing plant's laboratory staff increased the superplasticizer dosage. The site used large prefabricated steel formwork, with excessive single-time pouring and uneven vibration.
Prevention: Strengthen communication with the site and recommend strict adherence to standard operating procedures for pouring height and vibration methods. Improve concrete mixture workability by adjusting the amount of paste or using other methods.

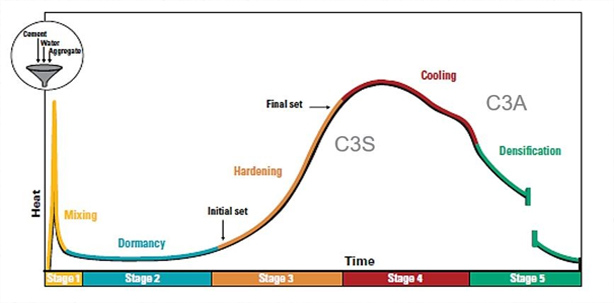

4.Prolonged Setting Time Due to Excessive Superplasticizer Dosage
Phenomenon: Concrete with high slump taking 24 hours to achieve final setting. A construction site reported that part of the concrete had not solidified 15 hours after pouring structural beams and slabs. The mixing plant sent engineers to inspect, and after heating treatment, the concrete finally set after 24 hours.
Cause: High superplasticizer dosage, combined with low nighttime temperatures, slowing down the concrete hydration reaction. Unauthorized water addition by site workers, increasing concrete water content.
Prevention: Use appropriate superplasticizer dosages and accurate measurements. Remind workers to ensure proper curing in low temperatures, and emphasize that polycarboxylate superplasticizers are sensitive to water content, prohibiting arbitrary water addition.
Case 2: Poor workability when leftover concrete mixed. A worker mixed a small amount of concrete with sodium naphthalene formaldehyde sulfonate superplasticizers into concrete with polycarboxylate superplasticizers, resulting in a slump of 190mm at the plant but only 100mm at the site, with almost no workability and slow filling of voids during vibration.
Cause: Different setting times and shrinkage rates due to different properties of the superplasticizers. Adverse reactions when mixed.
Prevention: Do not use concrete with different superplasticizers in the same section. Communicate with the site to delay formwork removal if issues are detected. Strictly separate the use of different superplasticizers, and ensure clear labeling and management during production to prevent such incidents.
6.Conclusion
Polycarboxylate superplasticizers are high-performance superplasticizers with low dosage, high water reduction rate, and low slump loss. As research deepens and the engineering community gains a better understanding, the application range of polycarboxylate superplasticizers will continue to expand. However, as polycarboxylate superplasticizers have only recently been introduced to China, their mechanisms are not fully understood, and more trials are needed to gain insights. The knowledge about concrete comes from experiments, guided by fundamental theories. The market offers various polycarboxylate superplasticizers with different synthesis paths, raw material sources, qualities, and production processes, leading to significant performance differences. Continuous experimentation and summarization are necessary to understand polycarboxylate superplasticizers better. Improper use can still result in rapid setting, delayed setting, water bleeding, segregation, and reduced strength.
