In the field of modern building materials, silica fume, as a special material, is gradually becoming a key factor in optimizing the performance of concrete. silica fume is a type of fly ash collected from the flue dust during the smelting of ferrosilicon alloys or metallurgical silicon in ferrosilicon alloy plants and metal plants, with a considerable annual output. If it is not reasonably utilized and directly discharged into the environment, it will cause extremely serious pollution to the environment. Therefore, in recent years, the recycling and utilization of silica fume have attracted much attention from material researchers, and its application in the concrete industry has achieved the great feat of turning waste into treasure.
I. The Microscopic Mechanism of Silica Fume in Optimizing Concrete Performance
Compared with ordinary concrete, concrete containing silica fume shows distinct characteristics at the microscopic level, with significantly improved structural uniformity. Under low water-cement ratio conditions, the incorporation of silica fume promotes profound changes in the microstructure of the cement paste. The original microstructure of the cement paste may have more pores and relatively well-crystallized hydrated products, while after the intervention of silica fume, it gradually transforms into a system dominated by poorly crystallized hydrated products, forming a matrix structure with significantly reduced porosity and more compact and dense. With the gradual increase of silica fume content, important chemical reaction transformations occur inside the cement paste, that is, the continuous increase of the transformation amount of calcium hydroxide (Ca(OH)₂) into calcium silicate hydrate. This change directly leads to the content of CH in the cement paste showing a trend of decreasing with the increase of silica fume content. Moreover, the remaining CH forms smaller crystals compared to the unmodified Portland cement, and this change in microstructure has a positive significance for improving the overall performance of the cement paste.
After introducing silica fume into ordinary Portland cement, the proportion of chemical composition in the hydrated products has changed significantly, with the Ca/Si ratio obviously decreasing. This change in chemical composition endows the hydrated products with unique performance advantages, giving them a stronger ability to combine with other ions. From a macroscopic performance perspective, the barrier effect of the cement paste against ion invasion is strengthened, which can more effectively resist the penetration and erosion of harmful ions from the outside. At the same time, it also has a stronger inhibitory ability against alkali-aggregate reactions, which can seriously damage the durability of concrete, thereby greatly enhancing the stability and durability of concrete structures in complex environments.
At the same time, silica fume also has a positive effect on the interface transition zone between aggregates and cement paste in concrete. When concrete contains silica fume, it can promote the dense amorphous C-S-H phase to be fully filled and wrapped around the aggregates. Taking the microstructure of cement mortar containing 10% silica fume as an example, after 28 days of hydration, micro-pore structure analysis of the samples found that the total porosity increased by 8% compared to the control group without silica fume. Delving into the underlying reasons, it is due to the highly uniform distribution characteristics of the pozzolanic reaction between silica fume and Ca(OH)₂, which is not concentrated in the interface area as traditionally thought. On the contrary, the reaction mainly occurs in the capillary structure inside the paste. This unique reaction distribution pattern is like setting up "blockade checkpoints" in the capillary channels inside the paste, which effectively blocks the original capillary channels in the paste, resulting in a significant reduction in porosity. The reduction in porosity is directly related to the increase in concrete strength, especially in the later stages of sample hardening, where the increase in strength is more significant, laying a solid microstructural foundation for the performance of concrete structures under long-term load and environmental action.
II. The Multidimensional Impact of Silica Fume on Concrete Durability
1. Subtle Changes in Fresh Concrete Performance by Silica Fume
Fresh concrete, as a complex system formed by the mixing of cement, water, aggregates, and admixtures, has a crucial impact on the quality of casting projects and the long-term durability of concrete structures. Among them, workability and rheology are the core performance indicators of fresh concrete.

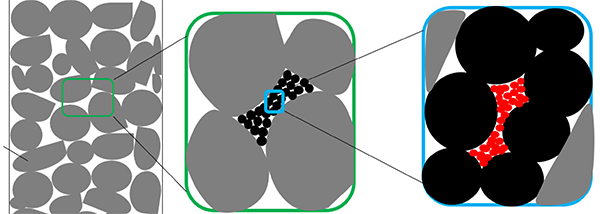

Many studies have shown that the addition of silica fume can significantly enhance the compactness of concrete mixtures. This is because silica fume particles have extremely high fineness and a huge specific surface area, which can be uniformly dispersed in the concrete system and fill the gaps between cement particles, aggregates, and other pores, thereby reducing the existence of internal voids and making the concrete structure more compact. However, the more silica fume added, the better. When the silica fume content reaches more than 4%, the cohesion of the concrete mixture will show a significant increasing trend. This phenomenon is mainly due to the high activity of silica fume and its interaction with cement hydration products, which enhances the attraction between the components of the concrete, leading to a decrease in fluidity. After a large number of experiments and comprehensive analysis, it is found that from the perspective of overall performance balance, a more suitable silica fume content is about 2% of the total amount of cement. At this content, the concrete can maintain good compactness while maintaining relatively appropriate workability and fluidity.
Further research on a specific situation with a water-cement ratio of 0.35 found that at any time within 0-50 minutes after stopping stirring, the slump measurement results showed that the slump increased with the increase of silica fume content. This result seems to contradict the previous conclusion that too much silica fume content leads to poor fluidity, but in fact, it is because under this water-cement ratio condition, the filling and dispersion effects of silica fume dominate to a certain extent, improving the workability of concrete. When the silica fume content is 6%, the slump and spread of the concrete can reach the maximum value at the same time. This indicates that at this content, the improvement effect of silica fume on the rheological performance of concrete reaches a peak state, allowing the concrete to show the best fluidity and filling during construction, which is easier for casting, compaction, and other construction operations, ensuring the uniformity and compactness of the concrete structure.
2. The Significant Effect of Silica Fume on Concrete Permeability
The permeability of concrete materials, that is, the ease of liquid and gas permeation in concrete, is one of the key indicators to measure the durability of concrete. Concrete with excellent anti-seepage performance can more effectively block the invasion of harmful substances from the outside, thereby greatly extending the service life of concrete structures.
Through in-depth theoretical analysis and precise calculation of the impact of silica fume on the microstructure of concrete, researchers have innovatively proposed a new procedural method. This method is based on a comprehensive understanding of the filling effect of silica fume, pozzolanic reaction, and changes in the pore structure of concrete, and can accurately predict the impact of silica fume on concrete permeability. Moreover, through rigorous experimental verification, the reliability and accuracy of this theoretical method have been confirmed.
Under specific conditions with a water-cement ratio of 0.4, it was found that when the silica fume replacement ratio is within the range of 8%-15%, the permeability of concrete is almost close to zero. This remarkable result indicates that within this range of silica fume content, the internal pore structure of concrete has been very effectively optimized and filled, forming an almost perfect anti-seepage barrier that can greatly resist the permeation of liquids and gases. However, when the silica fume replacement ratio exceeds 15%, the permeability of concrete will gradually increase. This is because an excessive amount of silica fume may cause an imbalance in the microstructure of concrete, leading to the generation of some new pores or defects, thereby weakening the anti-seepage performance. Through systematic comparative studies on the impact of silica fume on concrete permeability under different water-cement ratio conditions, it was ultimately determined that a silica fume replacement ratio of 12% is the best choice. This optimal replacement ratio can achieve the best balance between concrete anti-seepage performance and other performances under different water-cement ratios.
In addition, the fineness of silica fume is also one of the important factors affecting the permeability of concrete. When the fineness of silica fume increases, its particles become finer and can fill into smaller pores, further reducing the porosity of concrete, thereby reducing permeability. In many permeability studies, the permeability of chloride ions has attracted much attention due to its serious impact on the corrosion of steel reinforcement in concrete structures, becoming a typical representative of permeability research.
Research on the anti-seepage performance of concrete in the Persian Gulf region found that regardless of how the water-cement ratio changes, as the silica fume replacement ratio gradually increases from 0 to 7.5%, the chloride ion diffusion rate at 3, 6, and 9 months all show a significant decreasing trend. When the silica fume replacement ratio reaches 7.5%, the chloride ion diffusion rate basically reaches the minimum value. This result fully proves the excellent effect of silica fume in reducing the chloride ion permeability of concrete. By using the RCM method to measure the chloride ion diffusion coefficient of high-performance concrete, in-depth exploration of the anti-chloride ion permeability of concrete with single silica fume and co-mixed fly ash and silica fume was conducted.
Research results indicate that the chloride ion diffusion coefficient of concrete with only silica fume added is 0.27×10⁻¹²m²/s lower than that of concrete with both fly ash and silica fume added, representing a reduction of 25%. Compared to concrete without any additives, the reduction is as high as 84%. This is primarily due to the extremely fine particle size of silica fume and its large specific surface area, which can effectively fill the voids in the cement paste, thereby significantly enhancing the compactness of the concrete and its resistance to chloride ion diffusion. In summary, silica fume can significantly improve the resistance of concrete to chloride ion penetration, thereby strongly enhancing the durability of concrete and providing a solid guarantee for the long-term stable operation of concrete structures in harsh environments.
3. The Complex Impact of Silica Fume on Concrete's Resistance to Sulfate Erosion
Sulfate erosion, as one of the significant factors affecting the durability of concrete, is highly complex and extremely harmful, being one of the most troublesome types of environmental water erosion. Generally speaking, the smaller the water-cement ratio, the greater the density of the concrete, and the more difficult it is for sulfate solutions to penetrate the interior of the concrete, thus enhancing its erosion resistance. The addition of silica fume can effectively improve the density of concrete, thereby enhancing its resistance to erosion to a certain extent. However, different amounts of silica fume can have distinctly different impacts on the concrete's resistance to sulfate erosion, with complex chemical reaction mechanisms underlying this phenomenon.
Research on the resistance to sulfate erosion of mixtures containing silica fume, high-alumina cement, and ordinary Portland cement found that when the high-alumina cement containing silica fume is 15%, and the ordinary Portland cement content is 85%, its resistance to sulfate erosion is significantly enhanced. This indicates that in specific cementitious systems, an appropriate amount of silica fume can optimize the microstructure and chemical composition of the cement stone, improving its ability to resist sulfate erosion.
By precisely testing the content of sulfate diffusants in concrete, an in-depth study of the impact of adding silica fume to concrete on its resistance to sulfate erosion was conducted. Taking the test results at 14 weeks as an example, in Na₂SO₄ solution, when the silica fume content is 0%, 5%, 10%, and 15%, the content of sulfate in the concrete is 0.09%, 0.072%, 0.06%, and 0.05%, respectively. This result clearly shows that as the content of silica fume increases, the concrete's resistance to erosion in sodium sulfate solution gradually improves, meaning that the addition of silica fume can significantly enhance the concrete's resistance to erosion by sodium sulfate solution. This is because the addition of silica fume promotes the hydration reaction of cement, generating more hydration products that fill the pores inside the concrete, while the reaction between silica fume and cement hydration products changes the chemical composition of the cement stone, making it more resistant to erosion by sodium sulfate solution.
However, the situation is different in magnesium sulfate solution. When the silica fume content is 0%, 5%, 10%, and 15%, the content of sulfate diffusants is 0.11%, 0.083%, 0.06%, and 0.06%, respectively, meaning that when the silica fume content increases to 15%, the content of sulfate diffusants does not continue to decrease. Further research found that when cement mortar with 0%, 5%, 10%, and 15% silica fume is soaked in a 5% magnesium sulfate solution, the degree of damage to the cement mortar is assessed by the loss rate of compressive strength. The results show that as the silica fume content increases from 5% to 15%, the loss rate of compressive strength continues to increase, and is always above 40%, indicating that the resistance to magnesium sulfate erosion decreases gradually. The reason is that silica fume replaces part of the cement, triggering the pozzolanic effect, leading to a reduction in the content of calcium hydroxide. In magnesium sulfate solution, magnesium ions react with calcium hydroxide to form magnesium hydroxide precipitate, and the reduction of calcium hydroxide makes this reaction easier to proceed, leading to more magnesium ions invading the interior of the concrete, reacting with C-S-H gel, causing the destruction of C-S-H, and thus reducing the concrete's resistance to magnesium sulfate erosion. It can be seen that silica fume has a significant effect on improving resistance to sodium sulfate erosion, but there are certain limitations in resisting magnesium sulfate erosion. In practical engineering applications, the amount of silica fume should be reasonably determined based on specific environmental conditions and types of sulfate.
4. The Effective Improvement of Silica Fume on Concrete's Resistance to Freeze-Thaw Cycling
In the environments where many hydraulic concrete structures are located, the alternation of positive and negative temperatures is very common. During use, concrete will inevitably be subjected to the destructive effects of freeze-thaw cycles, which can even lead to freeze damage in severe cases. Especially in cold regions, the lack of frost resistance of hydraulic structures is often the main cause of structural damage. Therefore, improving the frost resistance of concrete materials has become one of the key ways to enhance the durability of concrete, and silica fume plays an important role in this aspect.
Research shows that when the water-cement ratio is 0.3, after 56 freeze-thaw cycles, the surface scaling of concrete with added silica fume is controlled below 500g/m², and the dynamic elastic modulus is maintained above 90%. The difference in these two indicators between concretes with different amounts of silica fume is not significant. This indicates that the addition of silica fume has improved the freeze-thaw resistance of concrete to a certain extent, allowing the concrete to maintain better stability during the freeze-thaw cycle, reducing surface scaling and internal structural damage.
Further research on the improvement of freeze resistance of recycled concrete by silica fume and air-entraining agents. The experiment used 5% and 10% silica fume to replace cement in equal amounts, and deeply explored the performance of silica fume in improving the freeze resistance of recycled aggregate concrete. The study found that the relative dynamic elastic modulus decrease and trend of the specimens with silica fume added were significantly smaller than that of the control specimens (without silica fume). After 300 freeze-thaw cycles, the relative dynamic elastic modulus of the control specimens and the specimens with 5% and 10% silica fume added were 81.3%, 92.1%, and 93.3%, respectively. At the same time, during the first 100 freeze-thaw cycles, the specimens with silica fume added had almost no mass loss, and the mass loss only slightly increased within 150-200 freeze-thaw cycles, with a minor degree of freeze-thaw damage, while the control specimens had a mass loss exceeding 0.2% after 100 freeze-thaw cycles. This indicates that silica fume can effectively improve the freeze-thaw resistance of recycled concrete and reduce the damage to the concrete structure caused by freeze-thaw cycles.
In addition, research on the impact of silica fume on the freeze resistance of concrete in different concentrations of chloride salts found that the mass loss of concrete without silica fume after 200 freeze-thaw cycles in 5% chloride salt was as high as 8.45%, and the relative elastic modulus was only about 40%, while the mass loss of concrete with silica fume under the same conditions was less than 2%, and the relative elastic modulus was basically stable at around 90%. This further proves the significant effect of silica fume in improving the freeze-thaw resistance of concrete, especially in a chloride salt environment, silica fume can effectively resist the exacerbation of freeze-thaw damage to concrete by chloride salts.
By testing the pulse propagation speed of concrete, the impact of silica fume content on the freeze-thaw resistance of concrete was studied and found that when the content of silica fume increased from 3% to 8%, the pulse propagation speed reduction rate continued to decrease, and after 210 freeze-thaw cycles, the pulse speed reduction rate was about 15%. However, when the silica fume content increased to 11%, the pulse propagation speed reduction rate sharply rose to more than 70% after 150 freeze-thaw cycles. Based on the above research results, it is known that there is a more suitable content range for silica fume to improve the freeze-thaw resistance of concrete, which is around 10%. Within this range, silica fume can fully exert its role in improving the microstructure of concrete, increasing density, and enhancing freeze-thaw resistance, thereby effectively enhancing the durability of concrete under cold environments and freeze-thaw cycles, ensuring the long-term safe and stable operation of hydraulic concrete structures.
5. The Inhibitory Effect of Silica Fume on Concrete's Resistance to Alkali-Aggregate Reaction
Alkali-Aggregate Reaction (AAR) refers to the phenomenon where, in a humid environment, the cement and mixing materials in concrete gradually react with alkalis in the surrounding environment and active components in aggregates after the concrete is poured and shaped, and the reaction products absorb water and expand, eventually leading to the expansion and cracking of the concrete, losing its original design performance.
AAR reactions mainly include three types: Alkali-Silica Reaction (ASR), Alkali-Carbonate Reaction (ACR), and Alkali-Silicate Reaction, among which ASR is the most common and harmful, and silica fume has a significant effect in inhibiting this reaction.
Jan et al. believe that silica fume, as a highly active additive, can effectively inhibit ASR expansion at a low replacement level of 8% - 10%. Yu Yang et al. used the mortar bar rapid method to deeply study the impact of silica fume on the expansion rate of mortar bars. The study found that different amounts of silica fume can significantly reduce the expansion rate of the specimens, and the expansion rate continues to decrease with the increase of silica fume content. When the silica fume content exceeds 15%, the expansion rate of the specimens after 14 days can be controlled at a very low level of less than 0.10%, which fully demonstrates the excellent inhibitory effect of silica fume on AAR.
The main mechanism of action is that after the addition of silica fume, the pozzolanic reaction occurs rapidly. In this reaction process, the active components in the silica fume react chemically with Ca(OH)₂ in the cement, absorbing a large amount of Ca(OH)₂ in the cement to form C-S-H gel with a low calcium-silicate ratio. This special C-S-H gel has a strong ability to absorb alkalis, can react with alkali ions in the concrete and fix them, thereby effectively reducing the alkali equivalent in the cement mortar. When the alkali equivalent is reduced, the degree of erosion of the alkali on active aggregates will also be reduced, inhibiting the expansion caused by alkali-silica reaction from the root, and ultimately achieving effective inhibition of AAR, ensuring the long-term stability and durability of concrete structures.
Further research found that the aggregate size of silica fume is not a key factor in triggering ASR reactions. Both large and small-sized silica fume can reduce the expansion of concrete to a certain extent. In-depth research on the impact of silica fume on ASR from the perspective of its microstructure and aggregate morphology found that only concrete containing sintered silica fume (aggregate size of 150μm - 4.75mm) showed a more significant change in expansion length after 14 days, exceeding 0.7%, while the expansion length change of concrete without added silica fume was less than 0.4%, and the expansion length change of concrete with other aggregate sizes of silica fume was all less than that of concrete without silica fume, with little difference between them. This indicates that although sintered silica fume may have a different impact on ASR reactions to a certain extent, overall, silica fume has a positive effect on inhibiting ASR reactions and is not absolutely limited by aggregate size, providing a more favorable basis for the widespread application of silica fume in concrete. This allows it to play an important role in inhibiting alkali-aggregate reactions and improving the durability of concrete in different types of concrete projects.
III. The Key Impact of Silica Fume on the Mechanical Properties of Concrete
Among the many performance indicators of concrete, strength undoubtedly occupies a central position. It is the most critical mechanical property after the hardening of fresh concrete and is also the top priority in the quality control of concrete. Many in-depth studies have shown that the addition of silica fume is like a double-edged sword, having a multi-dimensional and complex impact on the strength of concrete (including compressive strength, tensile strength, and flexural strength).
From the perspective of compressive strength, silica fume plays an active role in promoting the improvement of early compressive strength of concrete. In the initial stage after concrete pouring, silica fume, with its high activity and micro-filling effect, accelerates the hydration process of cement, optimizes the microstructure inside the concrete, enabling the concrete to form a denser and stronger skeleton structure in a short time, thereby effectively improving the early compressive strength. However, as time goes on and the concrete enters the long-term service stage, the situation undergoes subtle changes. The addition of silica fume may have a negative impact on the long-term compressive strength of concrete to a certain extent, leading to a downward trend. The root of this phenomenon lies in the long-term chemical reactions between silica fume and cement hydration products, which may change the stability of the internal microstructure of the concrete, causing the originally uniform and dense structure to gradually produce some subtle defects or weak links. Under the long-term action of external loads, these potential problems are gradually exposed, leading to a decrease in compressive strength.
In a special study on the impact of silica fume, fly ash, and a mixture of silica fume and fly ash on the compressive strength of concrete, it was found that silica fume itself has a very significant effect on improving the compressive strength of concrete. When the concrete age reaches the key point of 28 days, under the strengthening effect of silica fume, the compressive strength of the concrete can reach a high level of 72MPa. Further research on a specific situation with a water-cement ratio of 0.3 found that there is a non-linear relationship between the amount of silica fume and the compressive strength of concrete. When the amount of silica fume is within a specific range of about 5% - 9%, the compressive strength of the concrete shows a good trend of steady growth. By precisely comparing with the compressive strength of concrete without silica fume, when the silica fume content is 3%, both the 7-day and 28-day compressive strength test results show that it is basically the same as the concrete without silica fume, that is, at this time, the effect of silica fume on improving the compressive strength of concrete is not obvious. When the silica fume content exceeds 9%, the compressive strength of the concrete begins to gradually decrease, indicating that under this water-cement ratio condition, an excessive amount of silica fume breaks the balance state of the internal structure and performance of the concrete, thereby having an adverse effect on compressive strength.
In terms of tensile strength, the addition of silica fume also shows a phased characteristic in the impact on the splitting tensile strength of concrete. Overall, after the addition of silica fume, the splitting tensile strength of concrete shows an increasing trend within a certain range. When the silica fume content is precisely controlled at 6%, the splitting tensile strength of the concrete at 7 days and 28 days compared to the concrete without silica fume has increased by 24% and 16%, respectively. This improvement is due to the micro-enhanced network structure formed by silica fume inside the concrete, which effectively improves the bonding force and collaborative working ability between the components of the concrete, allowing the concrete to more effectively transmit stress when subjected to tensile loads, thereby increasing the splitting tensile strength. However, when the silica fume content exceeds the critical value of 6%, both the 7-day and 28-day splitting tensile strength test results show a trend of gradually decreasing strength. This indicates that under the condition of a water-cement ratio of 0.3, a silica fume content of about 6% is the optimal choice for enhancing the splitting tensile strength of concrete, and too much or too little silica fume content cannot achieve the best tensile strength improvement effect.
A systematic study on the impact of silica fume alone on the strength of concrete when the water-cement ratio varies within the range of 0.26 - 0.42 found that the optimal replacement ratio of silica fume affecting the compressive performance of concrete is not constant but has a close functional relationship with the water-cement ratio. Within this variation range, the optimal replacement ratio of silica fume affecting the compressive performance of concrete is roughly between 15% and 25%. For splitting tensile strength, the addition of silica fume can indeed improve the splitting tensile strength of concrete to a certain extent, but it is worth noting that an excessively high silica fume replacement ratio is not the dominant factor affecting splitting tensile strength. Moreover, under all studied water-cement ratio conditions, the silica fume replacement ratio usually does not exceed 15%. More importantly, within the silica fume replacement ratio range of 5% - 10%, it can significantly enhance the splitting tensile performance of concrete, and this range can be considered an ideal silica fume content range for improving the splitting tensile strength of concrete.
In terms of flexural tensile strength, silica fume shows an extremely prominent strengthening ability. Research indicates that silica fume can significantly improve the flexural tensile strength of concrete, and this strengthening effect is more pronounced at higher silica fume replacement ratios. When the silica fume replacement ratios are 5%, 10%, 15%, 20%, and 25%, respectively, precise calculations and analyses of the flexural tensile strength under all water-cement ratio conditions after 28 days found that the average growth rates are 10.2%, 14.5%, 27%, 31%, and 26.6%, respectively. These data clearly show that when the silica fume replacement ratio reaches around 20%, the flexural tensile strength of concrete can achieve the most significant improvement effect. This result indicates that in the design and construction of concrete structures, if there are high requirements for flexural tensile strength, such as in concrete structures with many bending members, it is possible to consider controlling the silica fume replacement rate around 20% to fully exert the advantage of silica fume in improving the flexural tensile strength of concrete, thereby enhancing the load-bearing capacity and durability of concrete structures under bending conditions.
IV. Synergistic Enhancement of Concrete Performance by Composite Admixtures
In the field of concrete material science, single admixtures have inherent property limitations due to their own characteristics. However, by skillfully mixing two or more admixtures together to form a composite admixture system, the advantages of different admixtures can be integrated, thereby opening up new paths for the enhancement of concrete performance. Among them, the co-mixing of fly ash and silica fume is a highly representative and widely studied composite admixture combination.
Silica fume belongs to the category of volcanic ash materials, and its unique physical properties are significantly different from other common materials. Its particles are extremely fine, with a particle size less than 1μm, and it has a high degree of dispersibility. These characteristics endow silica fume with an excellent filling effect, which can penetrate into the tiny pores and gaps in the microstructure of concrete, making the internal structure of the concrete more compact. At the same time, the pozzolanic effect of silica fume allows it to undergo chemical reactions with cement hydration products, generating additional cementitious materials, and further strengthening the matrix structure of the concrete. In addition, silica fume also has a pore solution chemical effect, which can regulate the ion concentration and chemical composition in the pore solution of concrete, thereby having a positive impact on the durability of concrete.
When mineral admixtures are co-mixed, the components are not simply mixed but trigger a series of complex and sophisticated physical and chemical composite effects. Among them, the pozzolanic composite effect is characterized by the interaction between the active components in different admixtures and cement hydration products, synergistically promoting the generation of cementitious materials and the optimization of the microstructure. This effect not only enhances the strength of concrete but also significantly improves the durability-related performance of concrete, such as impermeability and resistance to sulfate erosion. The micro-aggregate composite effect is due to the differences in particle size and shape of different admixtures, forming a multi-level filling system in the concrete, like well-graded aggregates, optimizing the stacking structure of the concrete, reducing porosity, and increasing the density and stability of the concrete. These composite effects are interwoven, jointly improving key performance indicators of concrete such as permeability, transition zone structure, and crack resistance. Especially in terms of resistance to sulfate erosion, the composite admixture makes the internal structure of the concrete more compact and chemically stable, effectively resisting the erosion and destruction of sulfate solutions, thereby significantly extending the service life of concrete structures in sulfate environments.
In view of the great potential of composite admixtures in enhancing concrete performance, many scholars have focused on this field in recent years, deeply exploring the mechanisms and laws of the impact of composite admixtures on concrete performance. For example, some studies have conducted systematic experimental research on the impact of silica fume and superplasticizer content on the strength and fluidity of high-performance concrete. By precisely controlling the silica fume replacement rate and the dosage of superplasticizers, and comprehensively testing and analyzing various performance indicators of concrete, it was found that when the silica fume replacement rate is set to 10%, and the superplasticizer dosage is 1.1%, high-performance concrete can achieve the best performance balance. Under this optimal mix ratio, the concrete shows remarkable mechanical properties at the age of 28 days, with a compressive strength of up to 92.7MPa, sufficient to withstand significant external load pressures. At the same time, the concrete spread is 170mm, indicating good fluidity, which can smoothly fill molds and complex structural spaces during construction, ensuring the uniformity and integrity of the concrete structure.
Another study used the mixture design method to deeply study the impact of four main components - cement, slag, fly ash, and silica fume - as mixture factors on the compressive strength of concrete at 7 days and 28 days, and the electrical conductivity at 28 days under the same water-cement ratio conditions. Researchers used advanced multiple regression analysis techniques to process and model a large amount of experimental data to reveal the quantitative relationship between the amount of each component and the performance of concrete. After a complex process of calculation and analysis, and considering various performance requirements such as concrete strength and durability, the study concluded that when the fly ash and slag replacement ratios are both 50% under the specific water-cement ratio, the concrete can achieve the optimal comprehensive performance. This result provides important theoretical basis and practical guidance for the design of concrete mixture ratios, helping engineering technicians to accurately adjust the ratio of composite admixtures according to specific engineering needs to obtain high-performance concrete that meets engineering requirements.
In addition, some studies have focused on the inhibitory effect of fly ash, silica fume, and air-entraining agents when used in combination against Alkali-Silica Reaction (ASR). ASR is one of the important factors affecting the durability of concrete, and its reaction process can cause internal expansion and cracking of concrete, severely damaging the performance and safety of concrete structures. Researchers carefully designed experiments to compare the expansion rate changes of mortar during the ASR process under different admixture combinations. The experimental results show that when only 10% fly ash and 5% silica fume are added to the mortar, the expansion rate after 24 hours is 0.18%. When 0.04% air-entraining agent is added to this admixture combination, the expansion rate of the mortar after 24 hours is significantly reduced to only 0.08%. This clear contrast fully proves that the three materials have a more significant synergistic effect when used in combination to inhibit ASR. The mechanism of the air-entraining agent may be to introduce tiny enclosed bubbles inside the concrete, alleviating the expansion stress produced by the ASR reaction, while working synergistically with fly ash and silica fume to change the internal chemical environment and microstructure of the concrete, thereby inhibiting the occurrence and development of ASR from multiple dimensions and further enhancing the durability and stability of concrete structures in alkali-active environments.
V. Conclusion
Silica fume, with its good activity, has brought many positive effects to the improvement of concrete performance in its application in concrete. It changes the composition and characteristics of cement stone at the microstructural level and has an undeniable effect on the durability (including impermeability, resistance to sulfate erosion, freeze-thaw resistance, resistance to alkali-aggregate reaction, etc.) and mechanical properties (compressive, tensile, flexural strength, etc.) of concrete at the macro level. It can also produce synergistic effects when used in combination with other admixtures.
However, due to the extremely complex and diverse factors affecting concrete performance, involving raw material characteristics, mix design, construction environment, and processes, it is difficult to determine an optimal silica fume replacement ratio that can comprehensively optimize the comprehensive performance of concrete. This also points the direction for future research, that is, to use more advanced methods such as multiple regression analysis to study in depth the impact of silica fume on the comprehensive performance of concrete. By using a large amount of experimental data and precise analysis models, the optimal silica fume replacement ratio for improving the comprehensive performance of concrete can be accurately proposed, thereby further promoting the scientific application of silica fume in the concrete industry. This will provide the construction engineering field with concrete materials that have better performance, stronger durability, and higher environmental friendliness, aiding the safety and sustainable development of building structures. In future research and practice, it is necessary to continue exploring the combination application possibilities of silica fume with other new materials or technologies, and to continuously tap its potential in enhancing the special performance of concrete to meet the increasingly complex and diverse construction engineering needs, such as in marine engineering, super high-rise buildings, special structures, and other fields, laying a more solid material foundation for the vigorous development of modern construction.
