The Dangers of Overdosing Polycarboxylate Superplasticizers in Concrete
With the rapid development of the construction industry, the performance requirements for concrete have been increasing. Polycarboxylate superplasticizers, as an efficient concrete admixture, are widely used in various concrete projects due to their advantages such as high water-reducing rates, low slump loss, and minimal impact on concrete durability. However, during actual production and construction processes, problems such as equipment failure, operator mistakes, and inadequate anticipation of concrete performance changes often lead to overdosing polycarboxylate superplasticizers. This can severely compromise concrete quality and engineering safety. Thus, it is crucial to deeply study the dangers of overdosing Polycarboxylate superplasticizers and propose effective solutions to ensure high-quality concrete production.
I. Role and Mechanism of Polycarboxylate Superplasticizers
1. Main Functions
Polycarboxylate superplasticizers primarily serve to reduce water, retain slump, and provide retardation. When appropriately added to concrete, they effectively lower the water-to-cement ratio, improve the flowability and workability of the mix, and make it easier to pour and place. Additionally, they reduce slump loss, ensuring the concrete maintains good workability for an extended period. The retardation function also prevents premature setting during transport and pouring, providing adequate time for construction.
2. Mechanism
Polycarboxylate superplasticizers work by interacting with calcium ions on the surface of cement particles through active functional groups such as carboxyl and sulfonic groups. These reactions create a layer of negative charges on the cement particles. As particles with the same charge repel each other, this breaks up agglomerations, dispersing the cement particles and releasing the encapsulated water, achieving the water-reducing effect. Furthermore, the long side chains of the superplasticizer molecules form steric hindrance on the cement surface, preventing particle agglomeration and maintaining slump stability.
II. The Dangers of Overdosing Polycarboxylate Superplasticizers in Concrete
1. Impact on Workability

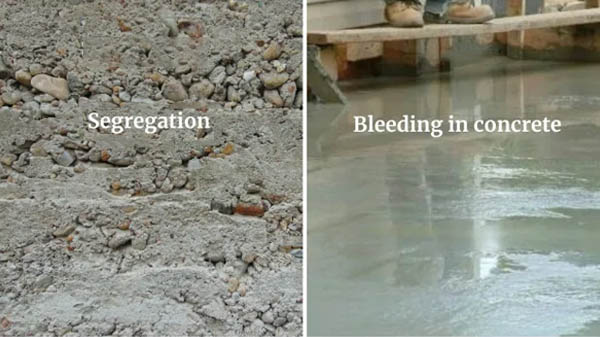

(1) Excessive Slump and Segregation/Water Bleeding
Overdosing Polycarboxylate superplasticizers leads to excessive water reduction, causing the concrete mixture’s flowability to dramatically increase, resulting in a larger slump. This excessive free water can separate from the cement paste under gravity, leading to segregation, where coarse aggregates sink and the cement paste rises. This segregation causes uneven distribution of the concrete components, compromising both the integrity and the construction quality. Water bleeding also worsens, forming a clear water film on the concrete surface, which reduces the surface strength and durability and may lead to the formation of pores and channels inside the concrete, compromising its impermeability.
For instance, in a high-rise residential project’s foundation, overdosing Polycarboxylate superplasticizers caused the concrete’s slump to exceed 220mm upon arrival at the construction site, resulting in severe segregation and water bleeding. Some areas saw coarse aggregates accumulate, and the cement paste was lost, requiring rework and causing delays and increased costs.
(2) Abnormal Setting Time
The retarding component in polycarboxylate superplasticizers, when overdosed, can cause a significant delay in the setting time of the concrete. This prolonged setting time can disrupt the normal sequence of construction processes. In projects with time constraints, such as large volume concrete pours, extended setting times may cause cold joints, reducing the overall integrity and strength of the concrete. In some cases, overdosing can even cause rapid setting due to an imbalance between the superplasticizer and cement, resulting in a loss of workability and severe quality issues. For example, in a bridge construction project, overdosing polycarboxylate superplasticizers extended the setting time to 48 hours, far beyond the normal 12–24 hours, delaying subsequent tasks like rebar tying and formwork installation, thus severely impacting the project timeline.
2. Impact on Mechanical Properties
(1) Slower Early Strength Development
Overdosing polycarboxylate superplasticizers suppresses the early hydration of cement, slowing the early strength gain of the concrete. In the early stages after pouring, insufficient strength growth may lead to deformation, cracking, or other issues under the concrete's self-weight, construction loads, or external environmental conditions. For structures that require early formwork removal or load-bearing capacity, such as vertical structures in high-rise buildings or precast components, insufficient early strength can affect project progress and structural safety. For example, a precast beam factory reported that, due to overdosing polycarboxylate superplasticizers, the strength of beams after 3 days of curing reached only 30% of the design strength, whereas it should have been above 50%, causing delays in lifting and installation and disrupting the production schedule.
(2) Reduced Long-Term Strength

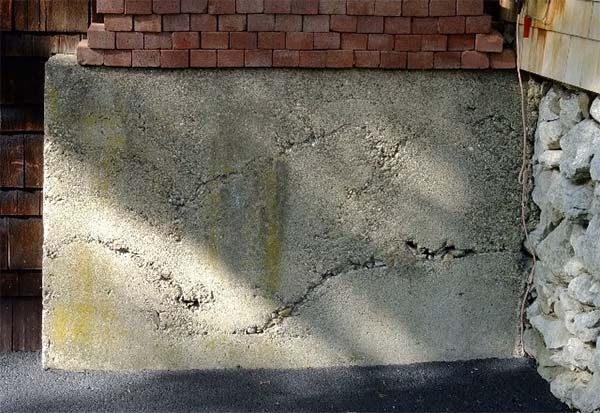

Excessive polycarboxylate superplasticizers not only hinder early strength development but also negatively affect long-term strength. The excessive admixture alters the concrete’s microstructure, weakening the interfacial transition zone between the cement paste and aggregates and increasing porosity. These changes decrease concrete’s density and strength. Over time, the concrete's durability and service life are also severely compromised under long-term loads, fatigue, or environmental corrosion. Studies show that overdosing polycarboxylate superplasticizers by 10% can reduce the 28-day strength of concrete by 10–15%. For example, in a large hydraulic engineering dam project, the overdosing of polycarboxylate superplasticizers resulted in cracks on the surface of the concrete several years after operation, with some areas' strength falling below the design strength, compromising the dam’s safety.
3 Impact on Durability
(1) Reduced Impermeability
Concrete's impermeability is a key durability indicator. Overdosing polycarboxylate superplasticizers, leading to segregation and water bleeding, creates interconnected pores and channels within the concrete. These pathways facilitate the penetration of water and harmful substances, significantly reducing the concrete’s impermeability. In projects requiring high impermeability, such as underground engineering or waterworks structures, reduced impermeability can result in water leakage, corrosive substances entering the concrete, and accelerated degradation. For example, a newly constructed underground parking lot experienced significant leakage due to overdosing polycarboxylate superplasticizers, which compromised its functionality and threatened structural safety.
(2) Decreased Freeze-Thaw Resistance
In cold regions, freeze-thaw resistance is essential for concrete durability. Overdosing polycarboxylate superplasticizers increases the air content of the concrete, and excessive tiny air bubbles may be compressed and destroyed during freezing, reducing freeze-thaw resistance. Furthermore, segregation and water bleeding result in uneven internal structures. During freeze-thaw cycles, the freezing and thawing of moisture generate uneven expansion and contraction stresses, further damaging the concrete. For example, a bridge project in northern China saw surface spalling and flaking after a winter freeze-thaw cycle, where overdosing polycarboxylate superplasticizers weakened the concrete’s freeze-thaw resistance.
(3) Weakened Carbonation Resistance

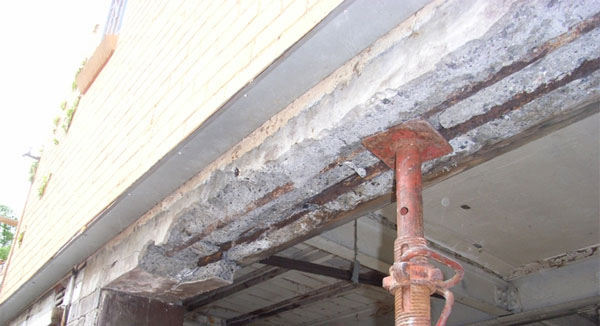

Carbonation occurs when carbon dioxide in the air reacts with calcium hydroxide in cement paste, forming calcium carbonate and water. Overdosing polycarboxylate superplasticizers can alter the cement hydration process, reducing calcium hydroxide content and increasing porosity, thus accelerating the carbonation process. Carbonation reduces concrete’s alkalinity, damaging the passive layer on reinforcement and promoting corrosion, which significantly impacts structural durability. For example, concrete columns in an industrial building, after several years of use, showed clear signs of carbonation due to overdosing polycarboxylate superplasticizers, leading to rusting steel reinforcement and cracking in the columns, threatening the structure’s safety.
III. Case Study: Overdosing Polycarboxylate Superplasticizers in a Commercial Complex Foundation
1. Project Overview
In a commercial complex foundation project, C35 concrete was used with a design slump of 160-180mm and setting times of 6-8 hours (initial) and 10-12 hours (final). During pouring, some concrete showed a slump of over 220mm with segregation and water bleeding, and setting time extended beyond 24 hours.
2. Cause Analysis
Upon investigation, it was found that a malfunction in the dosing equipment at the batching plant led to the overdosing of polycarboxylate superplasticizers. The operator did not take corrective action in time, which allowed the issue to worsen.
3. Corrective Actions
Production was halted, and the already-poured concrete was marked and monitored. Concrete with excessive slump was removed and replaced with properly dosed concrete. The batching plant’s dosing equipment was repaired, sensors were replaced, and routine maintenance and staff training were enhanced.
1. Strengthen Equipment Management and Maintenance
-Regular Calibration: Ensure dosing equipment is calibrated every 3 months. -Equipment Inspections: Conduct daily inspections of batching plant equipment to prevent malfunctions.
2. Improve Personnel Training and Management
-Operator Training: Regularly train personnel on the properties, dosage requirements, and risks of overdosing polycarboxylate superplasticizers. -Personnel Management: Implement clear responsibilities, conduct performance assessments, and ensure effective communication.
3. Optimize Mix Design and Adjustments
-Scientific Mix Design: Determine the appropriate dosage based on the project's requirements and material characteristics, and control admixture dosages. -Real-Time Adjustments: Adjust the mix proportion according to changes in materials and environmental conditions during production and construction.
4. Strengthen Quality Control and Testing
-Increase Testing Frequency: Regularly test the admixture dosage and concrete properties during production. -Strict Quality Standards: Enforce quality checks for incoming admixtures and ensure they meet the required standards.
Polycarboxylate superplasticizers are critical for enhancing concrete performance, but overdosing can severely affect its workability, mechanical properties, and durability, posing significant risks to project quality and safety. Effective measures such as better equipment management, improved personnel training, optimized mix designs, and stricter quality control are essential to preventing these issues. By adhering to best practices, the concrete industry can ensure the safe and efficient use of polycarboxylate superplasticizers guaranteeing higher construction quality and safety.
